The Number & Light Bar ensures that your number plate and rear lights always remain visible - making your journeys safe and compliant. Once prepared, the Number & Light Bar can be quickly assembled and disassembled.
To ensure that your licence plate and lights remain clearly visible, we show you here how Backrack+ components can be fitted and when it is necessary to use the Number & Light Bar.

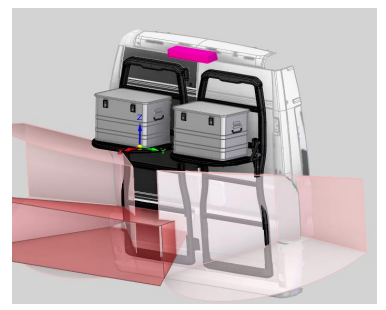

Position Mini Rack with the Snap Box
The Mini Rack with Snap Box can only be mounted in the upper position without the Number & Light Bar. The empty Mini Rack is also only permitted in the upper position without additional lighting when folded up.

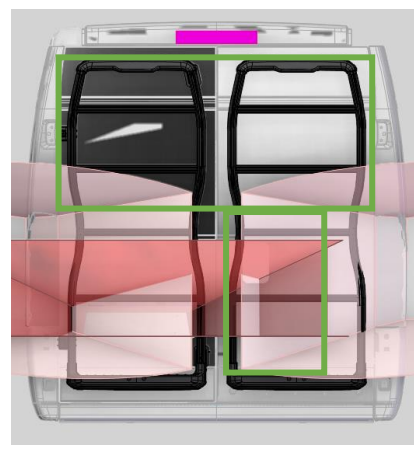

Position Canister holder
The green markings on the graphic show the possible positions for canisters that can be used without a Number and Light Bar.

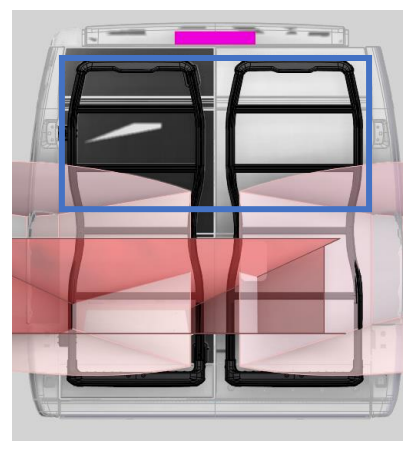

Position Wheel Holder
The Wheel Holder can be fitted within the blue marking without the need for a Number & Light Bar.

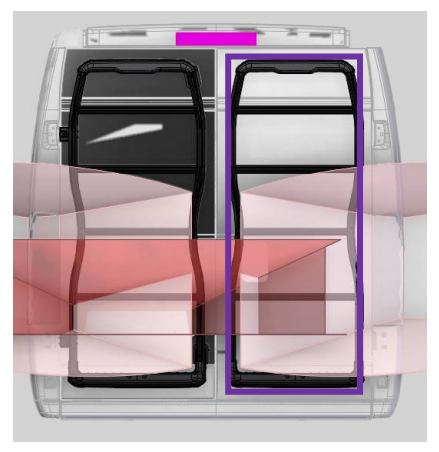

Position Bike Carrier Shuttle WITHOUT bikes
The Bike Carrier Shuttle can only be attached to the right-hand door without the licence plate and light repeater. This regulation applies exclusively to the use of without bicycles.
When using the Bike Carrier Shuttle with bicycles, the Number & Light Bar must be attached.

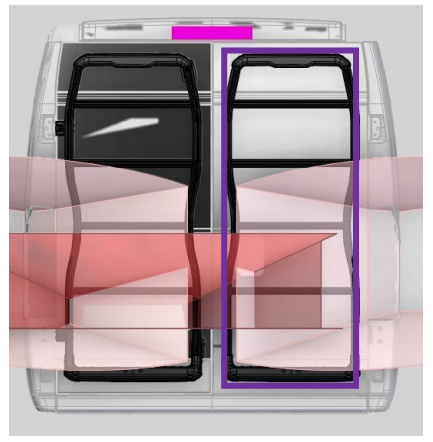

Position Gear Carrier
The Gear Carrier can only be fitted to the right-hand door without the Number & Light Bar.
Please note that it may be necessary to repeat the licence plate and lights if the transported equipment is very high and covers the third brake light. This must be checked before setting off and you may need to fit the Number & Light Bar to your vehicle.
